Mode

Select the type of stake object to create.

●       Include as site model data: Uses the stake as site model data if it is located in the source data layer (select when using stakes to create a site model).

●       Set elev to site model: Sets the stake elevation to the existing site model elevation.

●       Use as 2D/3D graphic only: Uses the stake as a drawing element that does not interact with the site model.

●       Site modifier object: Treats the stake object as a site modifier, which has an effect on the selected site model.

Site Model

Select the site model that the stakes affect

Style

Selects the graphic style of the stake object

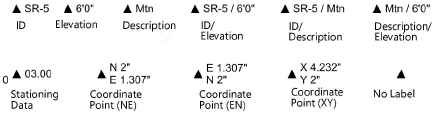

Label Reference

Selects the type of information to display in the label; select No Label to display no text. The available label fields depend on the label reference selected.

ID Prefix

For ID type labels, enter a prefix to display with the ID

Auto ID Numbering

Automatically increments the ID number parameter when inserting new stake objects

(Initial) ID Number

For ID type labels, specify the ID number. When Auto ID Numbering is selected, the ID Number field changes to Initial ID Number, and ID numbers are automatically incremented beginning with the initial number specified. When Auto ID Numbering is not selected, specify the default ID Number for stake objects.

Description

For description type labels, enter description text

Station Point Data

For Stationing Data labels, indicates the station point data for the selected stake object

Coordinate Units

Coordinate point type labels show the stake’s distance from a point of origin (user origin). This field specifies the units (document units, feet, or meters) to use for the coordinates.

Display Leader Line

Adds a leader line from the label to the stake object (adjust the leader line position by moving the leader line control point)

Scale Factor

Determines the size of the label display

Delete Source Loci

Deletes the original loci that were converted
