Mode
Tool
Tool set
Shortcut
Move Face
Push/Pull
3D Modeling
Shift+R
|
Mode |
Tool |
Tool set |
Shortcut |
|
Move Face
|
Push/Pull
|
3D Modeling |
Shift+R |

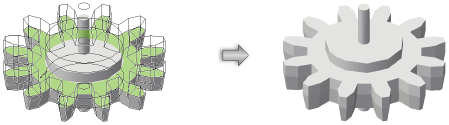

The Move Face mode extends the face of a solid, extruding the surrounding or adjacent geometry as the face moves.
To move the face of a solid in Move Face mode:
1. Click the tool and mode.
2.Click the desired planar face.
If needed, the Select Face dialog box opens to help select the correct face, as described in Selecionando as Bordas e Faces de um Sólido. To select the back faces of solids, press the Alt key (Windows) or Option key (Mac) while selecting.
3.The cursor changes to a double-headed arrow. Move the cursor to extend the face and its geometry. The distance can also be specified by entering a value in the Distance field on the Tool bar or floating data bar. The new solid is previewed on the drawing.
4.Click at the desired location to edit the solid.
~~~~~~~~~~~~~~~~~~~~~~~~~
