Visualizing checked out objects

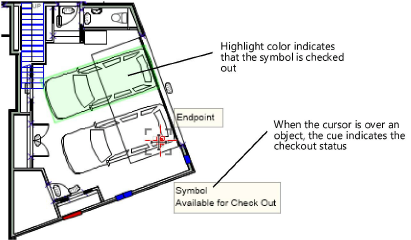

Object information cues display when the cursor is over an object, to identify the current owner. Optionally, you can also show color highlights on objects that are checked out to yourself and other users.

Each project user is assigned a unique color, which displays on the Users tab of the Project Sharing dialog box. You can use the Override Color button on the Users tab to override the assigned color for one or more users. The overrides display only in your working files for this project.

Select the command to highlight objects that are checked out. The following options are available:

●       Show objects using actual colors

●       Highlight objects I have checked out

●       Highlight objects using User Colors

Alternatively, add these project sharing options to the Tool bar; see Definindo as Preferências Rápidas.
