Move Polygon Handles mode

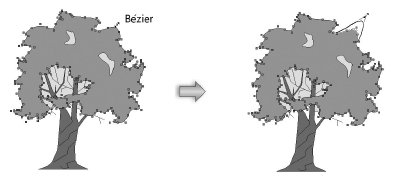

Select this mode to reshape a 2D arc, circle, line, rectangle, rounded rectangle, oval, polyline, polygon, or path object by moving one of its vertices or midpoint handles.

To reshape a 2D object by moving a vertex or midpoint handle:

1.      Select the 2D shape to change.

2.Click the tool and mode.

3.Click the vertex or handle to move. When the Reshape cursor displays, move the cursor to the new location.

4.Click to place the vertex/handle.

If an object cannot be reshaped with this tool, its handles do not display.

~~~~~~~~~~~~~~~~~~~~~~~~~
