Change Vertex mode

Select this mode to change an existing vertex to a different type of control point: corner, Bézier, cubic, radius, or fillet (circular arc) point.

To reshape a 2D polyline or polygon by changing a vertex:

1.      Select the polyline or polygon to change.

2.Click the tool and mode.

3.From the Tool bar, select the new type of control point for the vertex.

Change vertex does not work on a midpoint handle. Select only a vertex point.

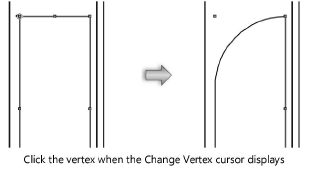

4.Click a vertex to change it to the new type.

~~~~~~~~~~~~~~~~~~~~~~~~~

Reshaping objects

Converting polyline vertices from arc to radius

Editing vertex-based objects
